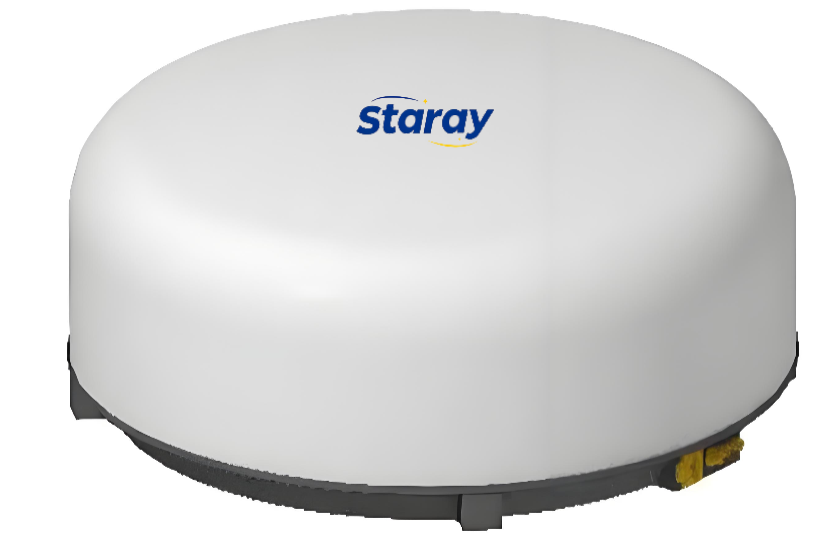

Product Description

0.45m airborne COTM antenna  is a flat plate COTM antenna terminal independently developed by our company. It adopts integrated design, integrated antenna, power amplifier, modem and so on. The system has a highly reliable platform that can automatically search, identify, lock and accurately align satellites even in harsh environments. The system has strong applicability and high reliability, and can help users to quickly realize high bandwidth multimedia data transmission such as Internet access, video conference, VIOP voice telephone, fax, file transfer and so on.

Product Features

1) Integrated design, built-in modem, access to Ku-band high-throughput satellite.

2) One-piece design with built-in 8-watt power amplifier and LNB.

3) With a key to boot star search function.

4) With remote monitoring function.

5) Support IP communication protocol standard, can support network port and WiFi control.

6) Support data rate: uplink rate ≥5Mbps, downlink rate ≥10Mbps.

7) Support GPS/ Beidou positioning.

Product Specifications

1) Flat panel antenna.

2) Antenna caliber: equivalent caliber 0.45 meters.

3) Operating frequency band

                  TX: 13.75GHz ~ 14.5GHz

                  RX: 10.7GHz ~ 12.75GHz

4) Antenna rotation range:

                  AZ:360° continuous

                  EL: 0° ~ +90°

                  POL: ±180°

5) Antenna gain

                 TX gain: ≥33.5dBi (@14.5)

                 RX gain: ≥32.5dBi (@12.75)

6) Polarization mode: linear polarization

7)  TX isolation: ≥85dB

8) Working mode: One key search satellite

9) Tracking accuracy: ≤ 0.2° (R.M.S).

10) Initial capture time: ≤120 seconds.

11) Operating temperature: -25℃ ~ +55℃; Storage temperature: -45℃ ~ +75℃.

12) Working humidity: It can work normally under the environment of 40℃ and 97%RH.

13) Protection level: IP65.

14) Working altitude is not less than 4500 meters.

15) Power supply: DC24V.

16) Maximum power consumption: ≤150W(including 8w power amplifier).

17) Machine weight: ≤25kg.

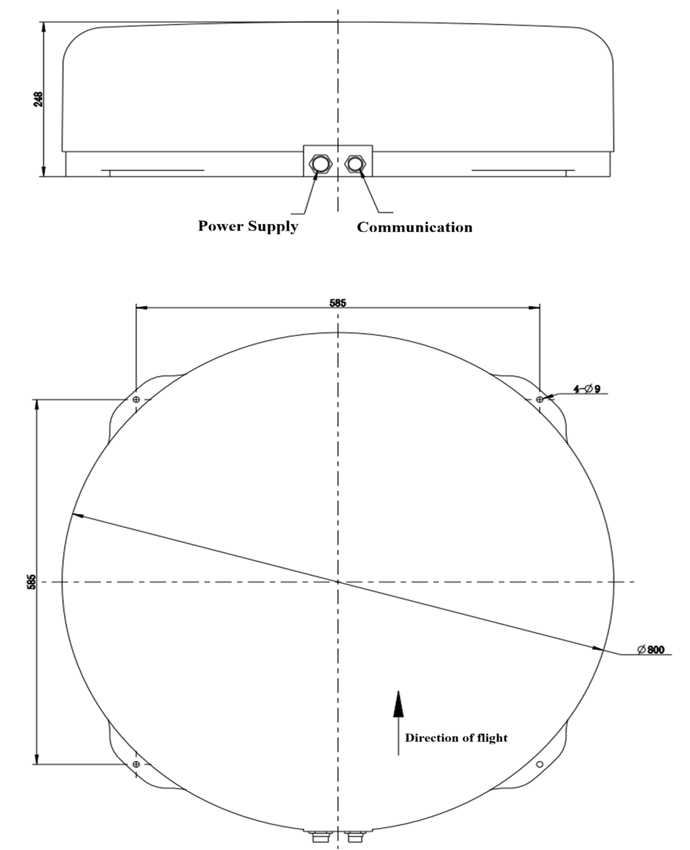

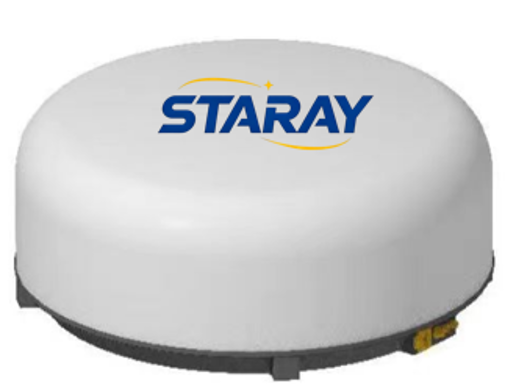

18) Antenna size: ≤φ800mm×248mm. (See the following picture for the installation)
