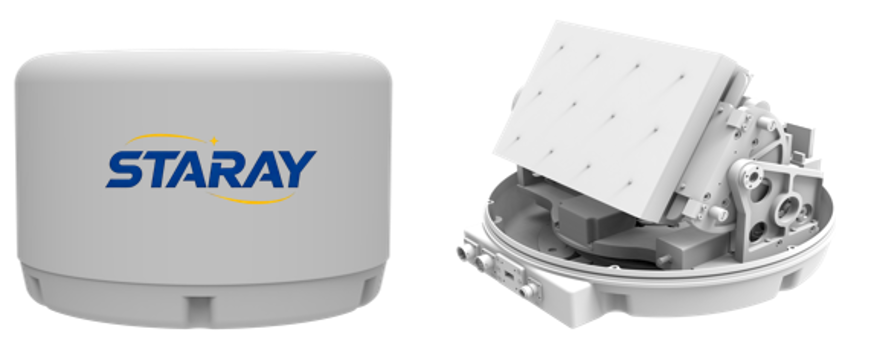

Product Appearance

Product Description

The 0.3m airborne flat-panel COTM satellite communication antenna system consists of antenna units (including plastic flat antenna surface, waveguide feed network), antenna cover, inertial measurement system, servo control system (including turntable, high-frequency joint, motor and driver, position sensor), control host, signal, control and power interface. It features high efficiency, lightweight structure and high tracking accuracy.

Product Features

1)       The antenna has excellent electrical performance.

2)       Plastic electroplated horn array antenna: It can be quickly mass-produced, lightweight, and has high gain.

3)       Does not rely on GPS information: It uses satellite beacons for tracking and correction to eliminate gyro errors. It can still work normally without GPS information (just need to manually input the local latitude and longitude once before the initial alignment).

4)       Initial alignment is fast, tracking accuracy is high, the recovery time for obstructions is short, and satellite switching is rapid.

5)       Good stability effect: The azimuth uses a closed-loop stabilization algorithm, and can still accurately track satellites even during rapid turns or "S" movements.

6)       Easy to use: It can achieve dynamic alignment during movement, dynamic satellite switching.

7)       Easy to maintain: The system is modularly designed, with standardized and simple interfaces, and fault diagnosis and maintenance are convenient.

8)       Convenient integration: There are only 4 external interfaces, namely data output, DC power supply, intermediate frequency reception and transmission, and the connection relationship is simple.

Product Specifications

Packing & Attachment List
