SR100-A UAV
Product Details

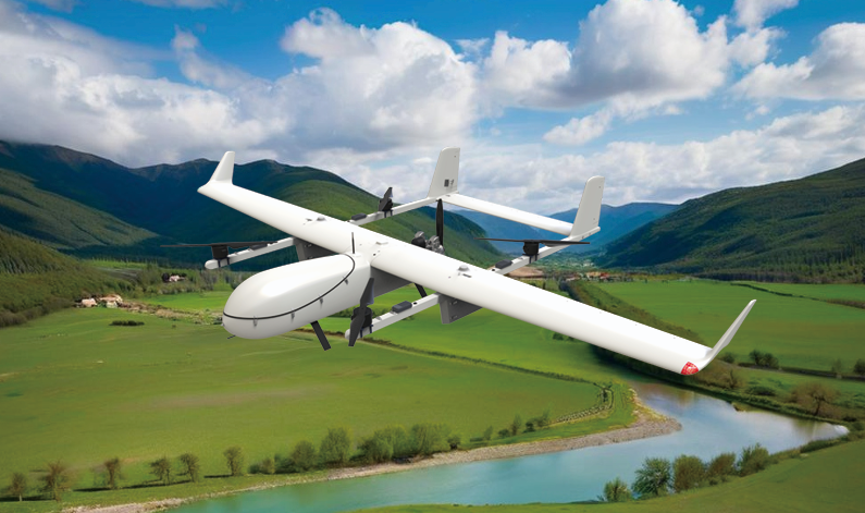

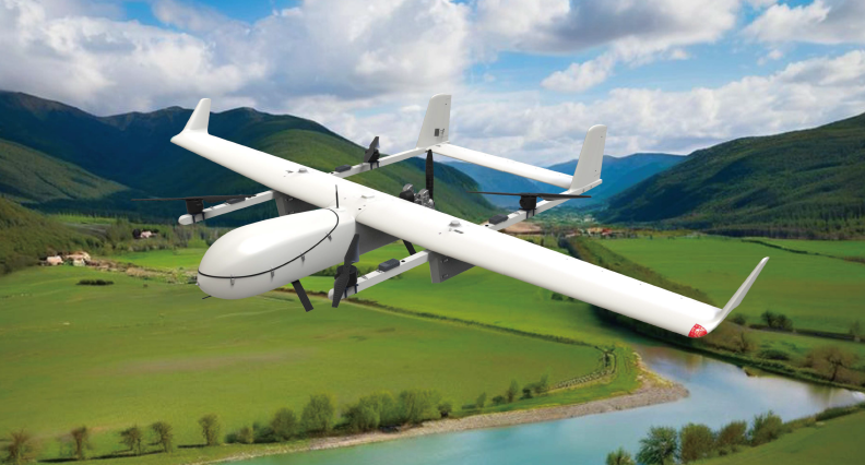

Product Appearance
Product Description
The SR100-A composite-wing unmanned aerial vehicle has a maximum takeoff weight of 145 kg an ideal flight platform suitable for various application scenarios that require large payloads and long endurance. At the same time. it can be integrated with our company's lightweight and high-throughput airborne broadband satellite communication equipment, effectively breaking the geographical and distance limitations of traditional communication, enabling the UAV to easily carry out ultra-long-distance cross-regional operations.
Product Specifications
L/T Method | VTOL |
Power | Oil-electric hybrid power |
Size | Wingspan:6.12m, Aircraft length:3.57m |
Max Payload Weight | 45kg |
Max Takeoff Weight | 145kg |
Flight endurance | 12hours |
Endurance | |
Cruising speed | 100-110km/h |
Wind resistance ability | Level6 |
Takeoff altitude | 4000m |
Max ceiling | 5500m |
Link type | Broadband Satellite Communication/30km 50km 100km, Radio optional |
Features
l Be equipped with a high-throughput airborne satellite communication antenna, enabling the control radius of the UAV to be extended infinitely.
l The maximum payload can reach 45 kilograms, and the maximum flight endurance can reach 12 hours.
l It adopts safety designs such as dual airspeed redundancy design, pitot tube heating design, battery temperature management and control design, and control surface redundancy design, which improves the reliability of the UAV.
