SR35E UAV
Product Details

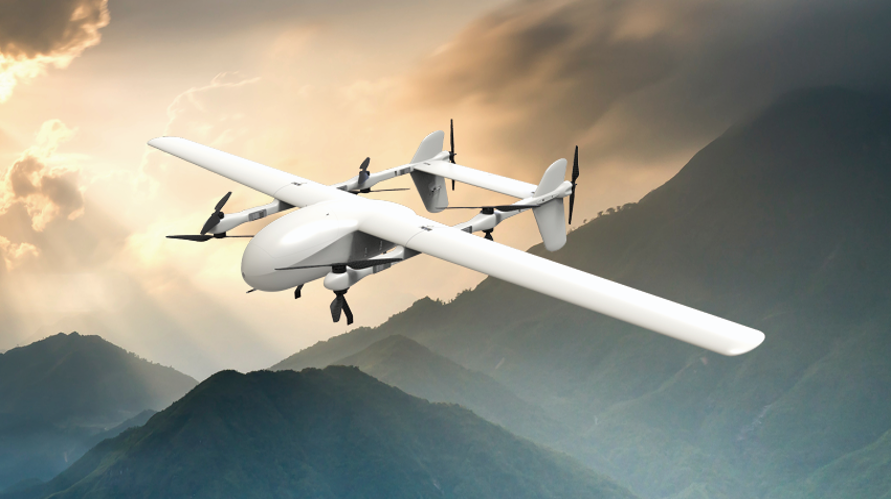

Product Appearance
Product Description
The SR35E UVA is a pure electric vertical takeoff and landing (VTOL) compound-wing UAV, featuring low noise, long endurance, large payload capacity, high flight stability, long communication range, and convenient disassembly and transportation. The UAV adopts a coaxial eight-rotor design to enhance the reliability of takeoff and landing; its excellent aerodynamic shape and VTOL configuration reduce flight power consumption; the whole machine adopts a quick-release design for easy disassembly and assembly, and is equipped with a supporting aviation case to ensure safe and convenient transportation.
Product Specifications
L/T method | VTOL |
Power | Electrically power |
Size | wingspan:4.6m Aircraft length:2.2m |
Max Payload Weight | 10kg |
Max Takeoff Weight | 40kg |
Endurance | 240min |
Cruising speed | 65-75km/h |
Wind resistance ability | Level 6 |
Takeoff altitude | 4000m |
Max ceiling | 6000m |
Link type | Broadband satcom communication,30km/50km/100km Radio optional |
Features
l Be equipped with a high-throughput airborne satellite communication antenna, enabling the control radius of the UAV to be extended infinitely.
l It has a redundant design with eight coaxial propellers. In the situation where a single rotor fails, the UAV can still land safely.
l Flexibly replace different types of task cabins to meet the requirements of various tasks.
