SR-PCTM60 UAV Pneumatic Catapult
Product Details

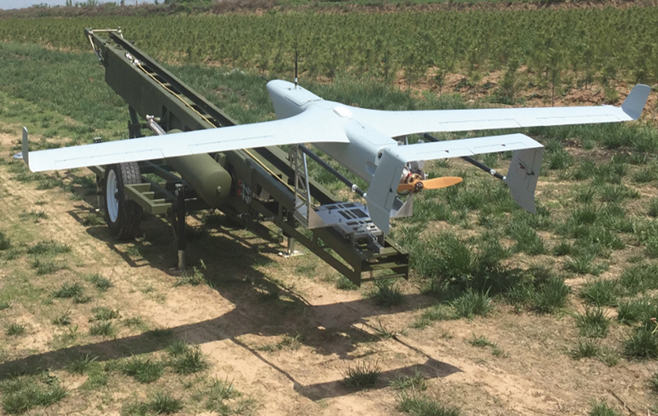

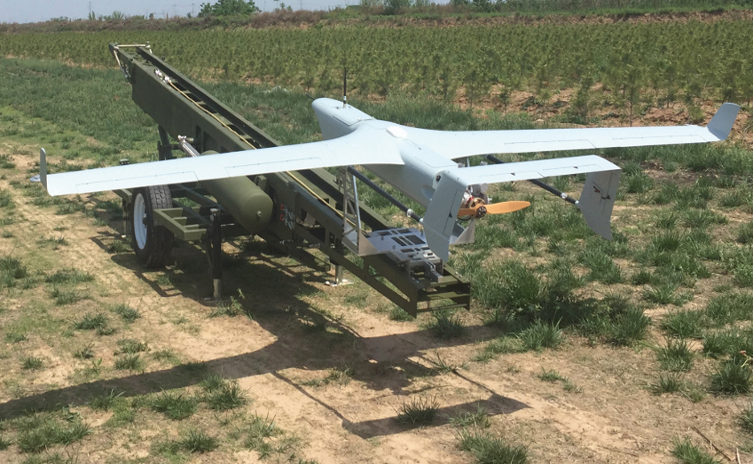

Product Appearance
Product Description
The SR-PCTM60 pneumatic catapult utilizes the expansion work of high-pressure gas to pull the UAV catapult cart to obtain a certain off-track speed. Compared with the rubber-powered catapult, it has the characteristics of high catapult stability, excellent parametric control of the catapult, high off-track speed, strong catapulting ability, small catapult overload, and little influence by the ambient temperature.
The SR-PCTM60 is equipped with an intelligent "idiot-proof" control terminal, which can automatically set the catapult pressure according to the catapult weight and off-track speed. It has a high level of intelligence, and is simple and safe to operate.
Product Specifications
Length of expansion | 6.5m |
Length of storage | 4m |
Ejection angle | 5~15° adjustable |
Catapult aircraft weight | ≤50kg |
Off-track speed | 22~27m/s adjustable |
Total system weight | <1T (Including air compressor and generator) |
Transportation form | Trailer-mounted or vehicle-mounted options are available. |
Features
The SR- PCTM60 pneumatic catapult uses the expansion of high-pressure gas to do work, pulling the unmanned aerial vehicle catapult cart to achieve a certain ejection speed. Compared with the elastic power catapult, it has the characteristics of high ejection stability, excellent parameter control of ejection, large ejection speed, strong ejection capability, low ejection overload, and less sensitivity to environmental temperature. The PCTM60 has an intelligent "dumbbell-style" control terminal, which can automatically set the ejection pressure according to the ejection weight and ejection speed. It has a high degree of intelligence, simple operation and is safe.
