SR100-C UAV
Product Details

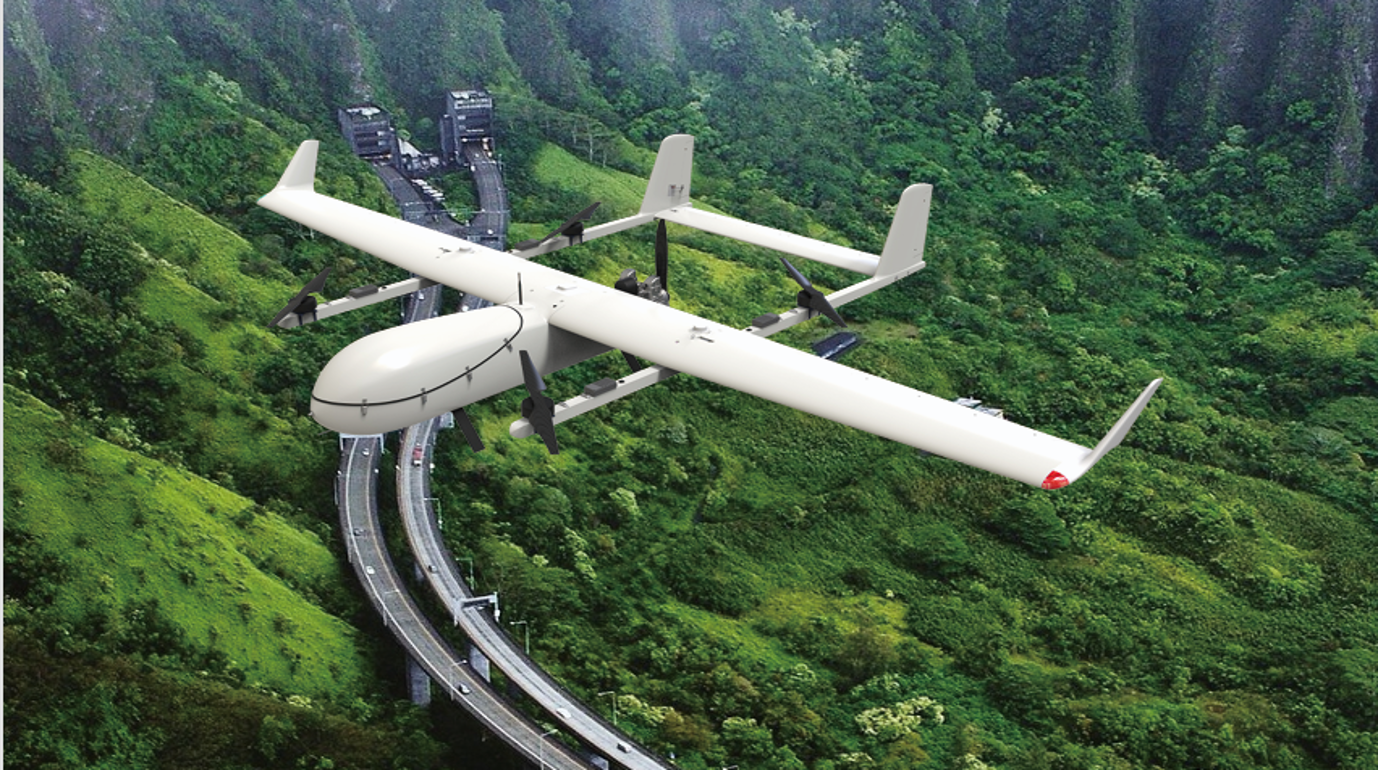

Product Appearance
Product Description
The SR100-C composite-wing UAV has a maximum takeoff weight of 120 kg. Compared with the takeoff weight of 145 kg of the FS100-A and FS100-B models, it is smaller. However, the miniaturization of the power system makes the flight platform lighter in weight and lower in cruising fuel consumption. Under the condition that the payload capacity remains unchanged, the impact on the endurance is relatively small, which makes it highly cost-effective.
Product Specifications
L/T method | VTOL |
Power | Oil-electric hybrid power |
Size | wingspan:6.12m Aircraft length:3.57m |
Max Payload Weight | 40kg |
Flight Endurance | 12h |
Endurance | 4~5h@35kg Payload |
7~9h@25kg Payload | |
Cruising speed | 100-110km/h |
Wind resistance ability | Level 6 |
Takeoff altitude | 4000m |
Max ceiling | 5500m |
Link type | Broadband satcom communication,30km/50km/100km Radio optional |
Features
l Be equipped with a high-throughput airborne satellite communication antenna, enabling the control radius of the UAV to be extended infinitely.
l The maximum payload can reach 40 kilograms, and the maximum flight endurance can reach 12 hours.
l It adopts safety designs such as dual airspeed redundancy design, pitot tube heating design, battery temperature management and control design, and control surface redundancy design, which improves the reliability of the UAV.
