SR60 UAV
Product Details
Product Appearance
Product Description

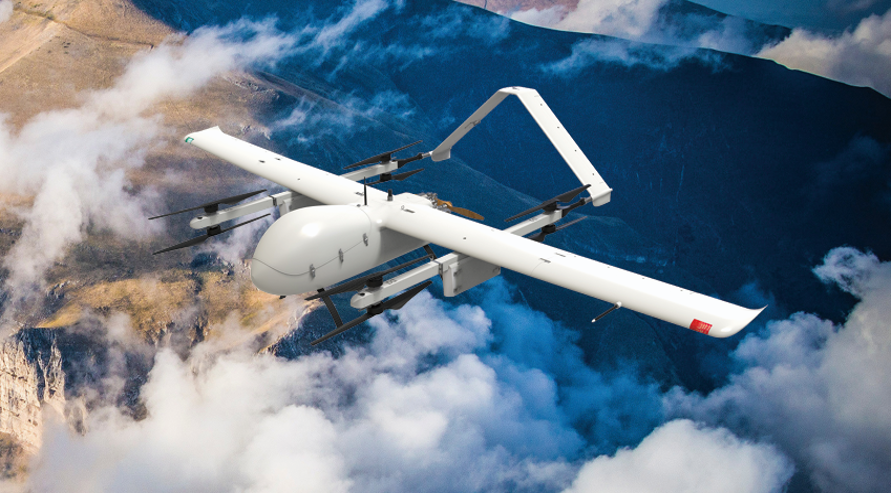

The SR60 UAV (UAV) adopts an upper wing and a V-tail aerodynamic layout. The rotor power features a four-axis and eight-propeller design. The fixed-wing power is equipped with a highly reliable integrated ignition and injection piston engine. at the same time, our company's lightweight high-throughput airborne broadband satellite communication equipment can be integrated, effectively breaking the regional and distance limitations of traditional communication, enabling the UAV to easily carry out ultra-long-range cross-regional
operations
Product Specifications
L/T method | VTOL |
Power | Oil-electric hybrid power |
Size | wingspan:4.6m Aircraft length:2.23m |
Max Payload Weight | 18kg |
Flight Endurance | 9h |
Endurance | 7~8h@8kg Payload |
Cruising speed | 85-95km/h |
Wind resistance ability | Level 6 |
Takeoff altitude | 4000m |
Max ceiling | 5500m |
Link type | Broadband satcom communication,30km/50km/100km Radio optional |
Features
l Be equipped with a high-throughput airborne satellite communication antenna, enabling the control radius of the UAV to be extended infinitely.
l It has a redundant design with eight coaxial propellers. In the situation where a single rotor fails, the UAV can still land safely.
l One of the industry's most compact portable drones in its class, featuring quick setup and pack-up capabilities within minutes.
