SR60E UAV
Product Details
Product Appearance
Product Description

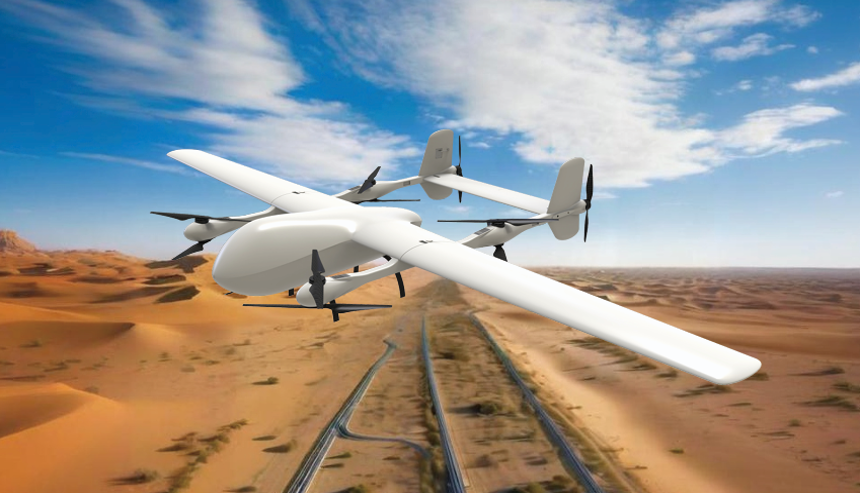

The SR60E UAV is a pure electric four-axis and eight-propeller compound-wing UAV, which is quiet and environmentally friendly. The fixed-wing power adopts a dual-tail thrust layout, serving as mutual backups for each other. The entire aircraft is modular and features a tool-free design, enabling rapid deployment and retraction. Meanwhile, it can integrate our company's lightweight high-throughput airborne broadband satellite communication equipment, effectively breaking the regional and distance limitations of traditional communication, allowing the UAV to effortlessly achieve ultra-long-range cross-regional operations.
Product Specifications
L/T method | VTOL |
Power | Electrically power |
Size | wingspan:5.6m Aircraft length:2.69m |
Max Payload Weight | 20kg |
Max Takeoff Weight | 68kg |
Flight Endurance | 270min |
Cruising speed | 65-75km/h |
Wind resistance ability | Level 6 |
Takeoff altitude | 4000m |
Max ceiling | 6000m |
Link type | Broadband satcom communication,30km/50km/100km Radio optional |
Features
l Be equipped with a high-throughput airborne satellite communication antenna, enabling the control radius of the UAV to be extended infinitely.
l It has a redundant design with eight coaxial propellers. In the situation where a single rotor fails, the UAV can still land safely.
l The maximum payload can reach 20 kilograms, and the maximum fight endurance can reach 4.5 hours.
