7.3m C Ku Ka Band Erath Station
Product Details
Product Description

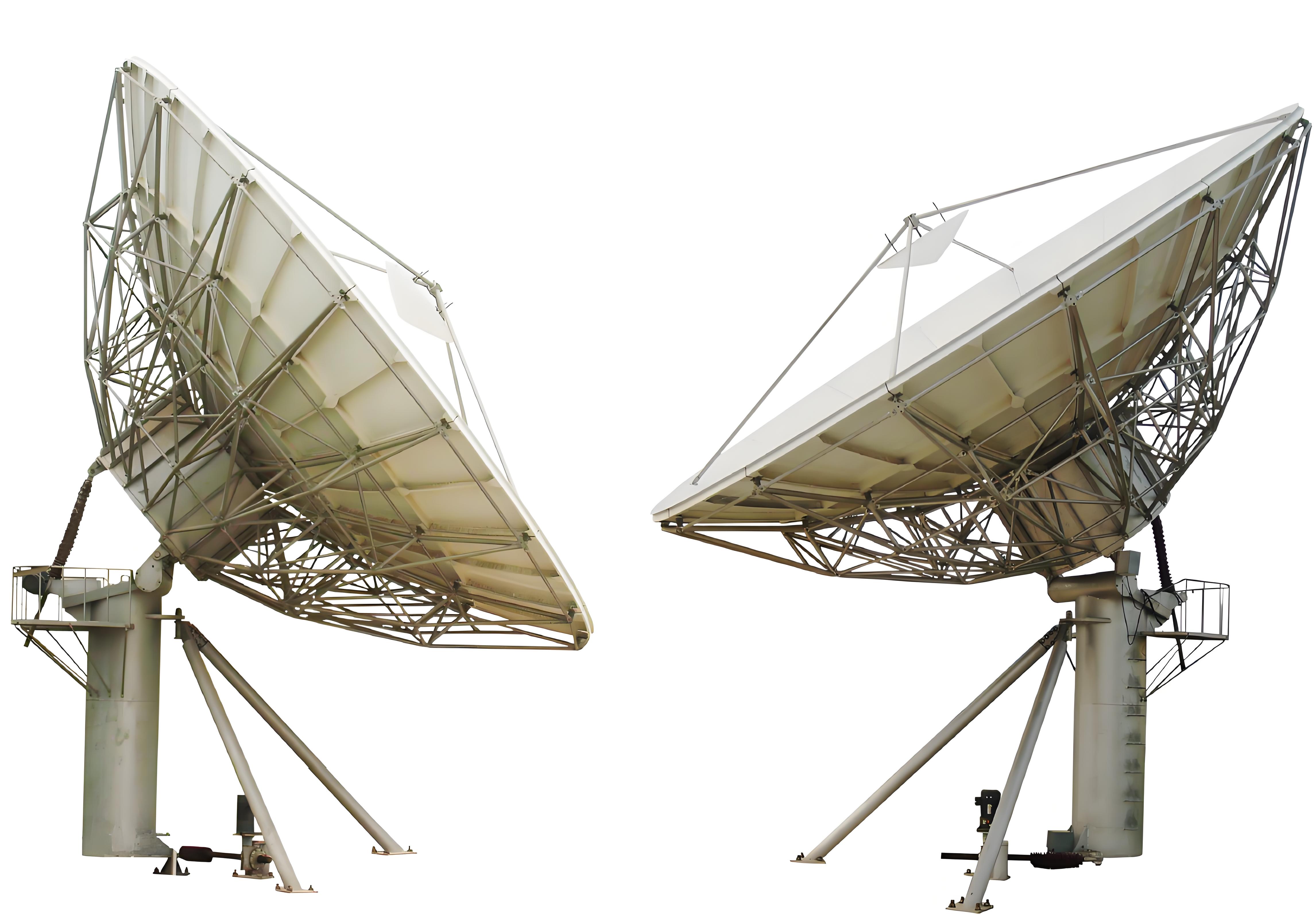

Staray 7.3m antenna delivers exceptional high performance for transmit/receive application in C, Ku, ka, X band in Tx/Rx 2 ports, 4 ports or Rx 1 port with high gain, low noise and low microwave interference.
Staray 7.3m antenna offers a fine reflector design with a stretch formed double contoured panels, strong back struts and hub for easy of field alignment. The standard designed azimuth over elevation pedestal provides a cost-effective solution for ground or roof installation with high stiffness and stability, full orbital arc coverage and fine drive performance, and ensures the pointing and tracking accuracy.
The electrical performance is compliant with FCC and ITU-RS-580 sidelobe specifications and Intelsat, Eutelsat, INMARSAT, ASIASAT, APT and CHINASAT, etc requirement
Product Specification
Electrical Specification | |||||
Type | SR7300C | SR7300KU | |||
Operating Frequency, GHz | C band | Ku band | |||
Receive | Transmit | Receive | Transmit | ||
3.4~4.2 | 5.85~6.725 | 10.95~12.75 | 13.75~14.5 | ||
Gain, Mid-band, dBi | 48 | 51.6 | 57.5 | 58.9 | |
Polarization | Linear / Circular | Linear | |||
XPD (on Axis), dB | 30 | 30 | 30 | 30 | |
Axial Ratio (Circular-Polarized) | 2-Port Feed 4-Port Feed | 1.5/1.0 | 1.5/1.0 | / | / |
VSWR | 1.3 | 1.3 | 1.3 | 1.3 | |
Antenna Noise Temperature 2-port feed 10° Elevation 30° Elevation 50° Elevation |
43K 32K 29K |
66K 52K 47K | |||
Typical G/T (EL=25°, 2-port) | 29.3 dB/K (30K LNA) | 36.1 dB/K (70K LNA) | |||
-3 dB Beam Width, Mid-band | 0.72º | 0.47º | 0.23º | 0.20º | |
Tx. Power Capability, KW | 5 | 2 | |||
Feed Interface | CPR-229G | CPR-137G | WR-75 | WR-75 | |
Feed Insertion Loss, dB | 0.2 | 0.2 | 0.25 | 0.2 | |
Isolation, Tx to Rx, dB | 90 | 85 | |||
Side lobe | CCIR580-4 | ||||
Mechanical Specification | ||
Antenna Diameter | 7.3m | |
Antenna Type | Cass grain | |
Surface Accuracy (RMS) | ≤0.5mm | |
Antenna Pointing Range | Azimuth Elevation Polarization | ±85°, 0°-330° continuous optional 10°~90°(Continuous) ±90°(Continuous) |
Drive Mode | Motorized | |
Motor Drive System | Azimuth Travel Rate Elevation Travel Rate Polarization Travel Rate | 0.11°/S(0.03°/S) 0.17°/S(0.04°/S) 1°/S |
Antenna Reflector Material | Aluminum Alloy | |
Finish of steel parts | Hot dipped Zinc | |
Environmental Specification | ||
Operational Wind | 72km/h gusting to 97km/h | |
Survival Wind | 216km/h | |
Temperature | -40°C~+60°C | |
Relative Humidity | 100% | |
Solar Radiation | 1135Kcal/h/m² | |
Seismic (Survival) | 0.3g(H), 0.15g(V) | |
Ice Loading | 13mm Operational; 25mm Survival | |
Key Features
² Meets or exceeds CCIR 580 and INTELSAT Requirements
² High G/T, excellent pattern characteristic
² Precision compression molded offset antenna
² CP/LP switchable feed
² Hot dip zinc steel pedestal, hub & back struts
² Galvanized stainless-steel fasteners
² Foundation hardware kit provided
² Package suitable for air, ocean land transportation
² High quality aluminum reflector panels and galvanized steel backup structure
² Self-aligning aluminum antenna reflector-no field alignment
² Galvanized steel elevation over azimuth pedestal
² Fixed foundation and Non-penetrating foundation optional for wider choice
² Survives 125 mph winds in any position and High wind configuration optional
Antenna Accessory
² Limit Switches
² Foundation hardware Kit
² Grounding Kits Cable - Mounting kits
² Cable mounting kits
² ODU Support Kits
² Factory Feed System Testing and Documentation
² Ocean /Air/land Transport Packing
Options
² L, S, C, X, Ku and DBS-band feed configurations
² 800MHz bandwidth is available
² Two or Four ports -Tx/Rx port in linear or circular polarized feeds
² Motorization kits
² Feed blower or deicing with automatic controls
² Lightning Rod Kits
² Non-penetrating mount
² Antenna control & tracking system for step track, program track, inclined orbit track
² Integrated LNB or LNA systems
² HPAs, converters and M&C systems
² Integrated LNB or LNA systems
² HPAs, converters and M&C systems
² Turnkey installation & testing
