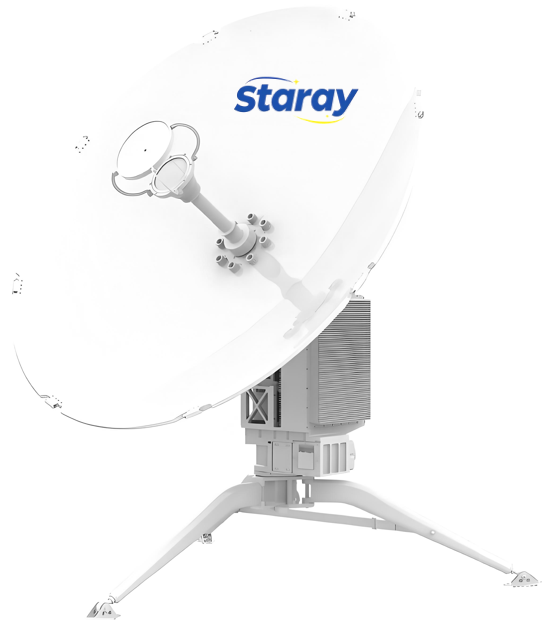

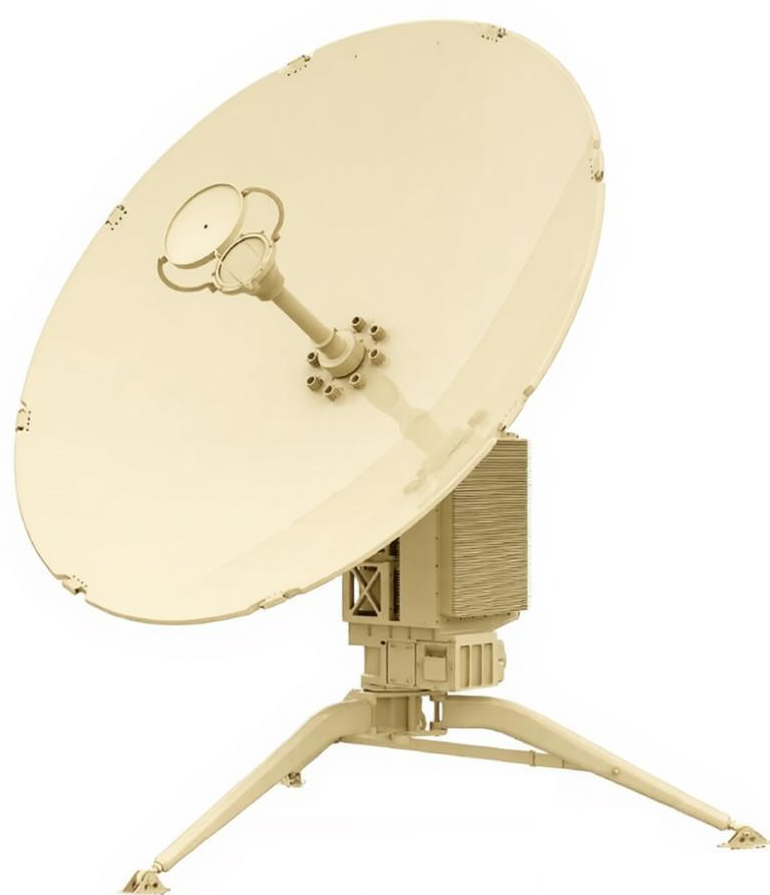

1.2m C Ku Ka Flyawy Antenna
Product Details
Product Composition
² Feed subsystem: Ring focus reflector (Carbon fiber), Ku Band feed horn, OMT, Filter and so on.
² Antenna control subsystem: Azimuth, Elevation, Polarization motor, angle sensor, ATPC control board and so on.
² Digital tracking subsystem: Beacon receiver, GPS, DVB, WiFi module and so on.
System Feature
² The main support system of the antenna is carbon fiber material. The system realizes 60% carbon fiber, the material is more stable, the weight is lighter, the strength is higher, and it is more convenient for portable use.
² The antenna has the features of low sidelobe and high gain, which can meet the technical requirements of satellite companies.
² The antenna system is equipped with GPS positioning system, position detection system, polarization adjustment system, servo drive system, automatic protection system, high performance satellite beacon receiving system, Wi-Fi wireless control, intelligent control management software and so on.
² “One-Key” operation, completion of positioning, deployment, tracking satellites automatically in 3 minutes.
² Under special circumstances, when GPS cann’t be used, the satellite longitude and latitude can be input manually, and the pointing can be completed quickly.
² It provides three automatic, electrical and manual control modes to facilitate emergency operation in various environments.
² The antenna system is powered by a wide range of AC220V and can be customized according to user requirements.
Technical Specifications
Product Name | 1.2m Ku Band Auto Flyaway Antenna | Feed Type | Ring Focus | ||||
Equivalent Caliber | 1.2m | Polarization | Linear Polarization | ||||
Frequency Range | Rx: 10.95 ~ 12.75 GHz | Gain | Rx: ≥41.5+20lg(f/12.50) dBi | ||||
Tx: 13.75 ~ 14.5 GHz | Tx: ≥42.7+20 lg(f/14.25) dBi | ||||||
XPD | ≥ 35 dB, On axis | SWR | Rx: ≤ 1.25 | ||||
Port Isolation | ≥ 85 dB | Tx: ≤ 1.25 | |||||
First Side Lobe | ≤ -14 dB | Power Capacity | 100 W | ||||
Interface | RF Interface: WR75, IF Interface: N-50Ω | ||||||
Range | Az | ± 95° | Speed | Az | 0.1° ~ 3 °/s | ||
El | 15° ~ 90° | El | 0.1° ~ 3 °/s | ||||
POL | ± 90° | POL | 1°/s | ||||
Auto Acquire Time | ≤ 3 min | Pointing Mode | Beacon/DVB | ||||
Pointing Accuracy | ≤ 0.3dB (R.M.S) | Positioning Mode | GPS | ||||
Handset Parameters | Mobile APP | Positioning Type | Automatic positioning, or manual input | ||||
Operation Temperature | -40°C ~ +60 °C | Operation Wind Speed | 11 m/s (Counterweight) | ||||
Storage Temperature | -50°C ~ +70 °C | Survival Wind Speed | 18 m/s (Counterweight) | ||||
Humidity Requirement | 95% (20 °C) | Protection Grade | IP65 | ||||
Power Supply | 220 VAC ±10%, 50Hz ± 2 Hz | Power Consumption | ≤ 100W (Exclude BUC) | ||||
System Weight | ≤ 28 Kg (Exclude the BUC, Package and the accessories) | ||||||
Package
Item | Name | Maximum Package Size (L×W×H mm) |
1 | Black Backpack A | 700×550×360 |
2 | Black Backpack B | 700×550×360 |
Packing List
Black Backpack A
Item | Name | Qty | Unit | Remark |
1 | Turntable Component | 1 | set | Include LNB (LNB and BUC are provided by the customer) |
2 | 8 panels | 4 | pcs | No. 1 ~ 4 panel |
Black Backpack B
Item | Name | Qty | Unit | Remark |
1 | 8 panels | 4 | pcs | No. 5 ~ 8 panel |
2 | Feed | 1 | set | |
3 | Tripod | 1 | set | |
4 | Compass cable | 1 | pc | |
5 | 220V input cable | 1 | pc | |
6 | Console cable | 1 | pc |
