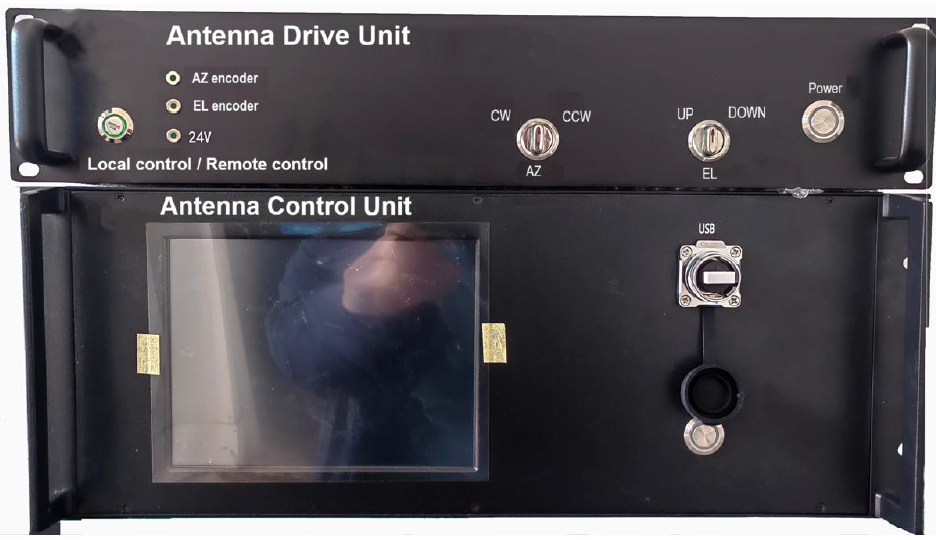

1. Product Description
SR1004-S antenna control system is mainly composed of the antenna control unit (ACU) and the antenna drive unit (ADU), and the connection between them can be achieved through network cables or optical fibers. The system communication interface is compatible with RS232/RS485, network ports, optical ports, etc.
Compared with traditional control systems, there are significant improvements in system stability, response time, anti-interference ability, and later expansion compatibility. Additionally, the maintenance and upgrade of the entire system can be fully controlled remotely, and a software one-click upgrade interface is provided to users, offering great convenience for their usage.
Tracking accuracy - Stepped tracking: Under normal conditions, it is superior to 1/10 of the half-power beam width (wind speed 30 meters per hour, gust 45 meters per hour).
l Very streamlined on-site wiring
l Support for Ethernet ports and fiber optic interfaces
l Full software upgrade capability
l Support for extended screen display
l Support for remote access and maintenance

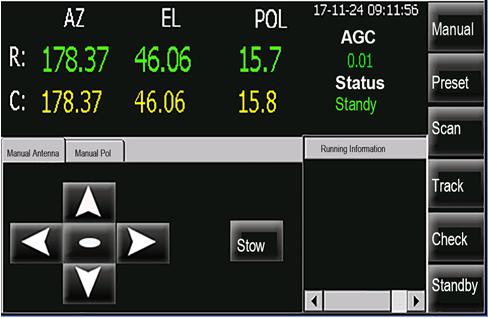

Operating Mode | ||||
Tracking | Pre-set | Satellite | Manual | Log |
Stepping tracking | Position presetting | Satellite storage | Manual control | Operation |
OPT tracking | One-click alignment with satellite | Stop | Alarm | |
Storage | Operation | |||
Multi-polarization option | ||||
Self-check indicator light | ||||
2. Antenna Drive Unit (ADU)
The antenna drive unit (ADU) provides multi-axis drive interfaces for azimuth, elevation, and polarization, among others. The azimuth and elevation axes are suitable for three-phase asynchronous motors. The polarization axis is applicable to single-phase AC motors and can also offer multi-polarization axis drive or linear/Circular polarization axis drive.
l Provide manual control knobs for azimuth, elevation and polarization
l Provide fiber optic interface
l Automatic fault detection
l GPS clock synchronization (optional)
l Full software-based one-click upgrade
3. Encoder (Absolute Type)
² Single-Channel Absolute Encoder 1
l Resolution: 0.08º
l Accuracy: 0.1º
l Standard: 12- bits
² Single-Channel Absolute Encoder 2
l Resolution: 0.0055º
l Accuracy: 0.02 º
l Standard: 16-bit
² Dual-Channel Brushless Rotary Encoder
l Resolution: 0.00069 º
l Accuracy: 0.001 º
l Standard: 19-bit

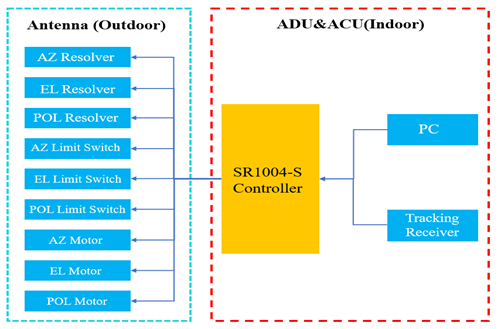

4.System Block Diagram
5. Optional Function
l Low temperature option
l Extended warranty
l ADU multi-motor or multi-polarization control
l Internal beacon device
l Selection of gyroscope accuracy
l Handheld control unit (HCU)
l Surge protector
l Southern Hemisphere mode
l SNMP protocol
6. Technical Specifications
Technical Specifications | |
System Specifications | Description |
Tracking Accuracy | Step tracking: Better than 1/10 3db beam width |
Angle Sensor | Standard 12-bit single-channel brushless encoder， accuracy ≤ 0.08° RMS. |
Angle Display Resolution | Azimuth (0.08°), Pitch (0.08°), Polarization (0.08°) |
Input voltage | ADU operating voltage: 380 (±10%) V, 50 (±5%) Hz ACU operating voltage: 220 (±10%) V, 50 (±5%) Hz |
Transmitter Interface | External beacon unit: (0-10v) analog voltage input, connector DB9 (K) Internal beacon unit: N-type connector (K) RJ-45 |
Remote Control Interface | RJ-45 |
Operating Environment | Operating environment temperature: -10°C to +50°C, Low-temperature option: -40°C to 70°C. Cable environment temperature: -10°C to +50°C, Low-temperature option: -40°C to 80°C. |
ADU and ACU Installation Method | 19-inch rack installation |
ACU Installation Size | Standard 4U |
ADU Installation Size | Standard 2U |
