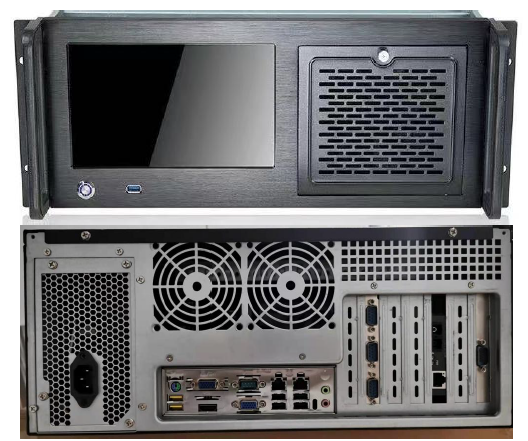

1. Product Description
SR1004-M antenna control system is a network-based antenna pointing control system. This system supports various network communication methods such as serial ports, network ports, and optical ports. Compared with traditional signal control systems, it has significantly improved in multiple aspects including stability, system response time, anti-interference ability, compatibility of terminal control equipment, and scalability. In terms of system monitoring, upgrading, and maintenance, remote operations based on the Internet or local area network can be achieved, and a software one-click upgrade interface is provided to users
Stepping tracking accuracy
It is superior to the receiving wave velocity width by 10% in an environment with a wind speed of 30 meters per hour and a gust of 45 meters per hour.
Pointing accuracy
It is superior to 0.05︒ RMS in an environment with a wind speed of 30 meters per hour and a gust of 45 meters per hour. The above pointing accuracy does not include the errors caused by the antenna structure.
Mode selection | |||
Tracking | Pre-set | Search | Manual |
Stepping tracking | Specify target location | Unlimited satellite storage | Manual control |
Program tracking | Area scanning | Satellite pointing | Stop |
Orbit prediction tracking | Scan alignment with satellite | Antenna storage | |
TLE (ephemeris) tracking (optional) | Multi-polarization axis selection | ||
Line/circle conversion | |||
l High precision tracking mode
l Simple on-site wiring
l Supports Ethernet and fiber
l Full software upgrade capability

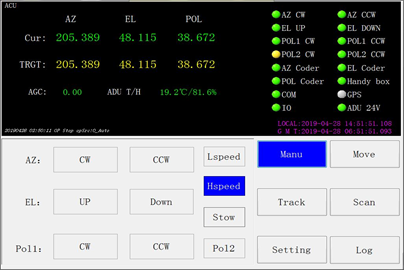

l Support HDMI extension screen display and operation
l Cooperate with software to support mobile phone monitoring

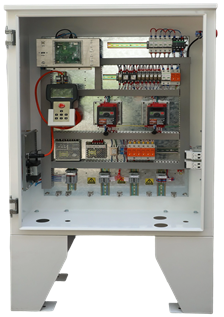

2. Antenna Drive Unit (ADU)
The antenna controller provides multi-axis drive control interfaces for azimuth, elevation and polarization. The azimuth and elevation drive shafts adopt three-phase asynchronous motors. The polarization drive shaft adopts single-phase AC motor, and can provide multiple polarization motor drive, which is convenient for polarization multi-band sharing or line-circle conversion.
l Secondary limit protection (primary soft limit, secondary hard limit)
l Support extended fiber interface
l Support extended lightning protection
l Fault self-test and indication
l Clock synchronization computer time or international standard time
l Upgrade the whole software with one click
l Extended Handheld Controller (HCU)
l Support speed ratio 10:1 (maximum 50:1)
3. Encoder (Absolute Type)
² Single-Channel Absolute Encoder 1
l Resolution: 0.08º
l Accuracy: 0.1º
l Standard: 12- bits
² Single-Channel Absolute Encoder 2
l Resolution: 0.0055º
l Accuracy: 0.02 º
l Standard: 16-bits
² Dual-Channel Brushless Rotary Encoder
l Resolution: 0.00069 º
l Accuracy: 0.001 º
l Standard: 19-bits

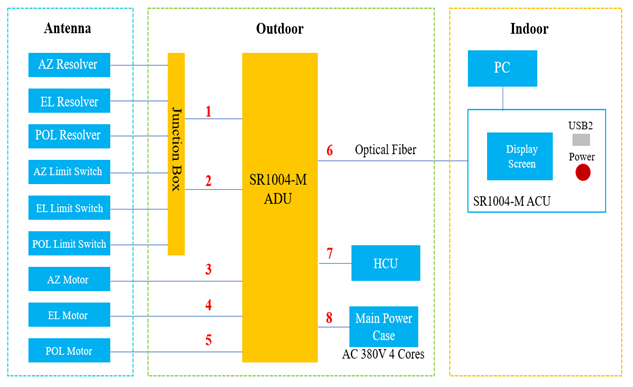

4. System Block Diagram
5. Optional Function
l Outdoor low-temperature configuration
l Extended warranty
l Multiple motors and multi-axis polarization control
l Internal beacon receiver
6. Technical Specifications
Technical Specifications | |
System parameters | Description |
Tracking accuracy | Stepping tracking: superior to 10% 3db beam width |
Angle sensor | Brushless 16-bit Accuracy ≤ 0.02° RMS. |
Angle display resolution | Azimuth, elevation (0.005°) polarization (0.08°) |
Input voltage | ADU operating voltage: 380 (±10%) V, 50 (±5%) Hz ACU operating voltage: 220 (±10%) V, 50 (±5%) Hz |
Tracking interface | Independent beacon machine: RS232/ (0-10v) or analog voltage input interface, DB9 (K) Built-in beacon machine interface: N-TYPE (K) |
Communication interface | Standard RJ-45 network port or SC-SC optical fiber interface |
Safety | (1) A limit protection system composed of primary soft limit and secondary hard limit provides higher-level security guarantee for the safe rotation of the antenna. (2) All external transmission shafts are equipped with independent short-circuit and overload protection. (3) Power redundancy design ensures the long-term stable operation of the system. (4) All cables are high-temperature flame-retardant cables. (5) Outdoor junction box protection level: IP67 |
Work environment | Outdoor controller operating temperature: -20°C to + 50°C; Low-temperature box body option: -40°C to 80°C Cable operating temperature (standard): -10°C to +50°C; Low-temperature cable option: -60°C to 105°C |
